Refrigerator, Freezer & Chiller Parts Refrigerator Spare Parts

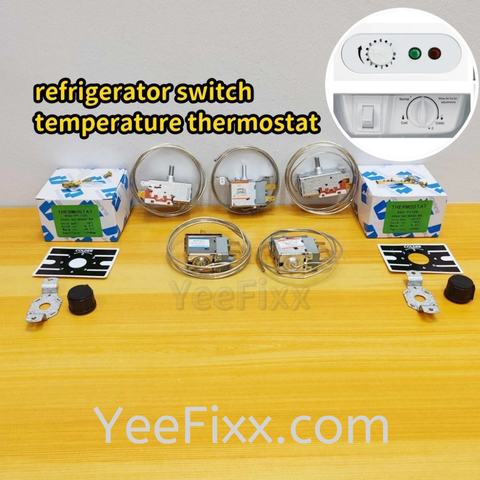

YeeFixx refrigerator switch temperature thermostat controller control freezer chiller fridge thermo kontroller peti ais
Price: RM6.30 to RM7.20
Price varies by variant. Select the option you need when you enquire.
- 100% new, ready stock
- Packed within 24 hours
- Malaysia supplier
- Wholesale prices
Available variants 5
Variant: types
- WDF-18L 3pin
- WPF-20L 2pin
- WPF-24L 2pin
- P1125 2pin
- P1126 2pin
- Weight
- 0.2 kg
- Packing dimension
- 6 cm (Length) x 8 cm (Width) x 3 cm (Height)
- Stock
- Ready stock
Product description
Description provided by YeeFixx in English and Bahasa Melayu.
English
- can control your refrigerator temperature
- suitable for freezer / fridge / chiller and application refrigeration
- universal types , can suitable any brands
- new and nice quality
- main function thermostat is controls the cooling process by monitoring the temperature and then switching the compressor on and off
- When the sensor senses that it's cold enough inside a refrigerator, it turns off the compressor If it senses too much heat, it switches the compressor on and begins the cooling process again
- if thermostat got problem , fridge maybe will not cool or compressor will not be running
- 2pin is always control compressor motor
- 3pin can control compressor motor and defrost heater / lamp / fan
Bahasa Melayu
- boleh mengawal suhu peti ais anda
- sesuai untuk penyejuk beku freezer / peti ais dan penyejukan aplikasi
- jenis universal, boleh sesuai dengan mana-mana jenama
- baru dan kualiti bagus
- Termostat fungsi utama ialah mengawal proses penyejukan dengan memantau suhu dan kemudian menghidupkan dan mematikan kompressor
- Apabila sensor merasakan bahawa ia cukup sejuk di dalam peti sejuk, ia mematikan kompressor Jika ia merasakan terlalu banyak haba, ia menghidupkan kompressor dan memulakan proses penyejukan semula
- jika termostat ada masalah, peti sejuk mungkin tidak akan sejuk atau kompressor kompressor tidak akan berjalan
- 2pin sentiasa mengawal motor kompressor
- 3pin boleh mengawal motor kompressor dan pemanas nyahbeku
- 3pin boleh mengawal motor pemampat dan nyahbeku pemanas / lampu / kipas
Additional details
c (common ) , no (normally open) , nc (normally closed)
Temperature Range:
WDF-18L 3pin= -18掳C ~ +3掳C
WPF-20L 2pin= -20掳C ~ +3掳C
WPF-24L 2pin= -24掳C ~ -7掳C
P1125 2pin= -18掳C ~ +8.5掳C
P1126 2pin= -9掳C ~ -24.5掳C
c (api masuk), tidak (biasa terbuka), nc (biasa tertutup)
Kadar suhu:
WDF-18L 3pin= -18掳C ~ 3掳C
WPF-20L 2pin= -20掳C ~ 3掳C
WPF-24L 2pin= -24掳C ~ -7掳C
P1125 2pin= -18掳C ~ 8.5掳C
P1126 2pin= -9掳C ~ -24.5掳C
