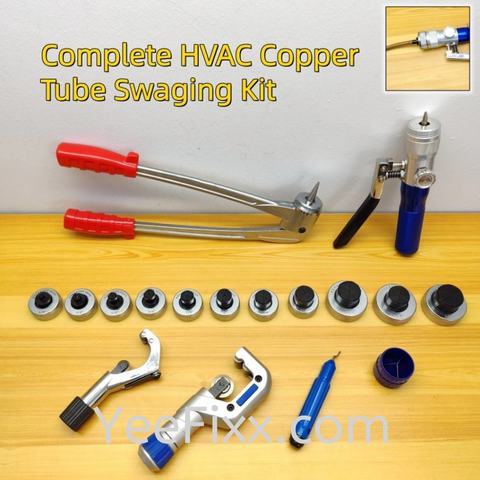

YeeFixx Complete HVAC Copper Tube Swaging Kit pipe expander Hydraulic Hand Tube Expander Tools Manual Long-Handle Lever
Price: RM201.00 to RM351.00
Price varies by variant. Select the option you need when you enquire.
- 100% new, ready stock
- Packed within 24 hours
- Malaysia supplier
- Wholesale prices
Available variants 4
Variant: Swag Expander
- Hydrauli 3/8"~1-1/8"
- Hydrauli 3/8"~1-5/8"
- Manual 3/8"~1-1/8"
- Manual 3/8"~1-5/8"
- Weight
- 5.7 kg
- Packing dimension
- 8 cm (Length) x 42 cm (Width) x 30 cm (Height)
- Category
- Aircond & Refrigeration Tools
- Stock
- Ready stock
Product description
Description provided by YeeFixx in English and Bahasa Melayu.
English
- If you need some pro item for swaging pipe , make pipe hole become bigger , connect pipe for welding pipe , you can choose item in here .
- Purpose is to enlarge the end of copper or soft aluminum tubes so equal size tubes can sleeve and be brazed securely.
- Enables straight sleeve joints with fewer couplings, reducing leak points and rework.
- Recommended workflow is cut square, deburr inside and outside, select the matching head, expand the end and braze.
- Apply a light lubricant on the head for smoother expansion and longer tool life.
- Ideal for aircond technicians, HVAC workshops, maintenance contractors and refrigeration cabinet makers.
- Not recommended for steel pipes or extra thick hard wall tubing.
- Inspect the tube edge for cracks or thinning before expansion to avoid failure.
Bahasa Melayu
- Jika anda perlukan alat profesional untuk swaging paip, membesarkan mulut paip, dan menyambung paip bagi kerja brazing/kimpalan, anda boleh pilih item di sini.
- Tujuannya ialah membesarkan hujung paip tembaga atau aluminium lembut supaya paip saiz sama boleh disarungkan dan dibrazing dengan kukuh.
- Lever expander lasak dan lebih menjimatkan untuk kawasan kerja luas, manakala Hydraulic Hand Tube Expander memerlukan tenaga rendah dan lebih pantas untuk ruang sempit serta kerja berulang.
Additional details
A. Manual Long-Handle Lever/Yoke Tube Expander Kit.
Lower cost. Simple and rugged. No oil/seal maintenance. Wide head selection.
Two-hand high effort. Needs more clearance. Slower with average repeatability.
Standard installs with plenty of space, tight budgets, full size coverage.
B. Hydraulic Hand Tube Expander.
One-hand low effort. Stable force, rounder and more consistent swages. Fast head change, great in tight spaces.
Higher price. Requires seal/oil care. More delicate if abused.
Pro service with repetitive work, cramped spots behind indoor units, thicker wall or larger OD copper.
Recommendation: Choose A for budget and durability. Choose B for speed, less fatigue and top-quality forming, especially in tight spaces.
The lever expander is rugged and budget friendly for open work areas, while the Hydraulic Hand Tube Expander is low effort and fast for tight spaces and repetitive jobs.
Set Hydraulic 3/8"~ 1-1/8"= (3/8", 1/2", 5/8", 3/4" , 7/8" , 1" , 1-1/8") +box +274cutter + 210deburr tool
Set Hydraulic 3/8"~ 1-5/8" = (3/8", 1/2", 5/8", 3/4" , 7/8" , 1" , 1-1/8" ,1-1/4" , 1-3/8" , 1-1/2" , 1-5/8") +box +32cutter + 210deburr tool
Set Manual 3/8"~ 1-1/8" = (3/8", 1/2", 5/8", 3/4" , 7/8" , 1" , 1-1/8") +box +274cutter + 210deburr tool +208reamer
Set Manual 3/8"~ 1-5/8" = (3/8", 1/2", 5/8", 3/4" , 7/8" , 1" , 1-1/8" ,1-1/4" , 1-3/8" , 1-1/2" , 1-5/8") +box +32cutter + 210deburr tool
